Memory Solutions

EML0021

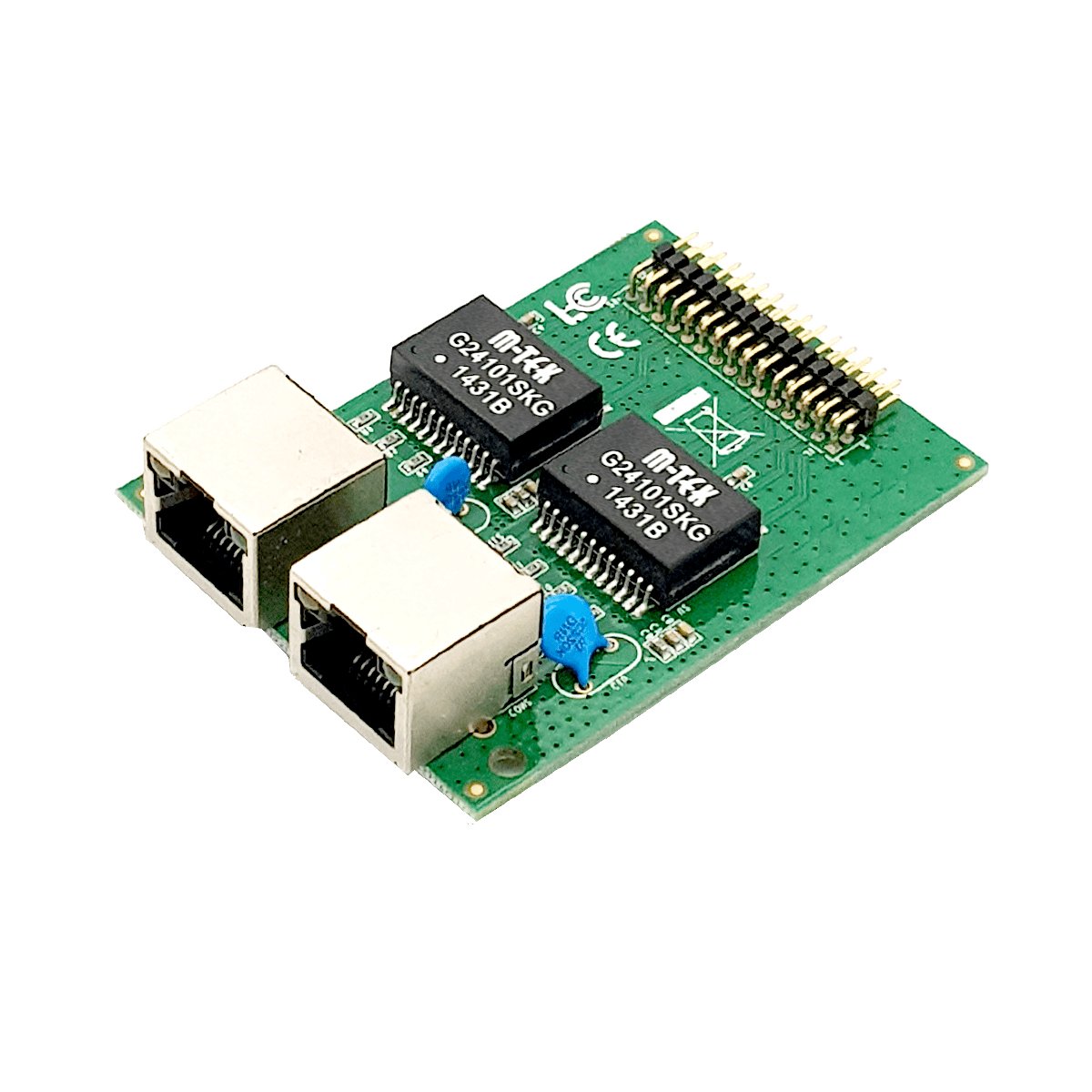

  • MINIPCIE 2-PORT GIGA LAN CARD
  • Gigabit detection and Link/Activity LED indicators
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
HARDWARE
Mode Name EML0021
Bus Type Mini PCI-e
Card Type Embedded
Chipset ID REALTEK RTL8111G
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface RJ45 (Gigabit Ethernet)
Port Style Integrated on Card
Port Numbers 2

PERFORMANCE
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Data Transfer Rate 1000 Mbps
Supported Protocols CSMA/CD

CONNECTOR(S)
Connector Type(s) 1-Mini PCI Express x1 (52 pin) Male
External Ports 2-RJ-45

System Requirements
Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.4 to 10.10
Linux 3.5.x to 4.11.x LTS Versions Only

ENVIRONMENTAL
Humidity 5~85% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)

Certification
CE – FCC – ROHS

APPLICATION

Upgrade from 10/100 Ethernet capability to Gigabit capability
Add an Ethernet port to a workstation or server computer, for redundancy or bridging
Add networking capabilities to an old system with no Ethernet port
