EHL0011
EHL0011
- HALF MINIPCIE 1-PORT GIGA LAN CARD
- SA single 10/100/1000Mbps compatible RJ45 Ethernet port
- Gigabit detection and Link/Activity LED indicators
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
| HARDWARE | |
| Mode Name | EHL0011 |
| Bus Type | Mini PCI-e |
| Card Type | Embedded |
| Chipset ID | REALTEK RTL8111G |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Port Style | Integrated on Card |
| Port Numbers | 1 |
PERFORMANCE |
|
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| Supported Protocols | CSMA/CD |
CONNECTOR(S) |
|
| Connector Type(s) | 1-Mini PCI Express x1 (52 pin) Male |

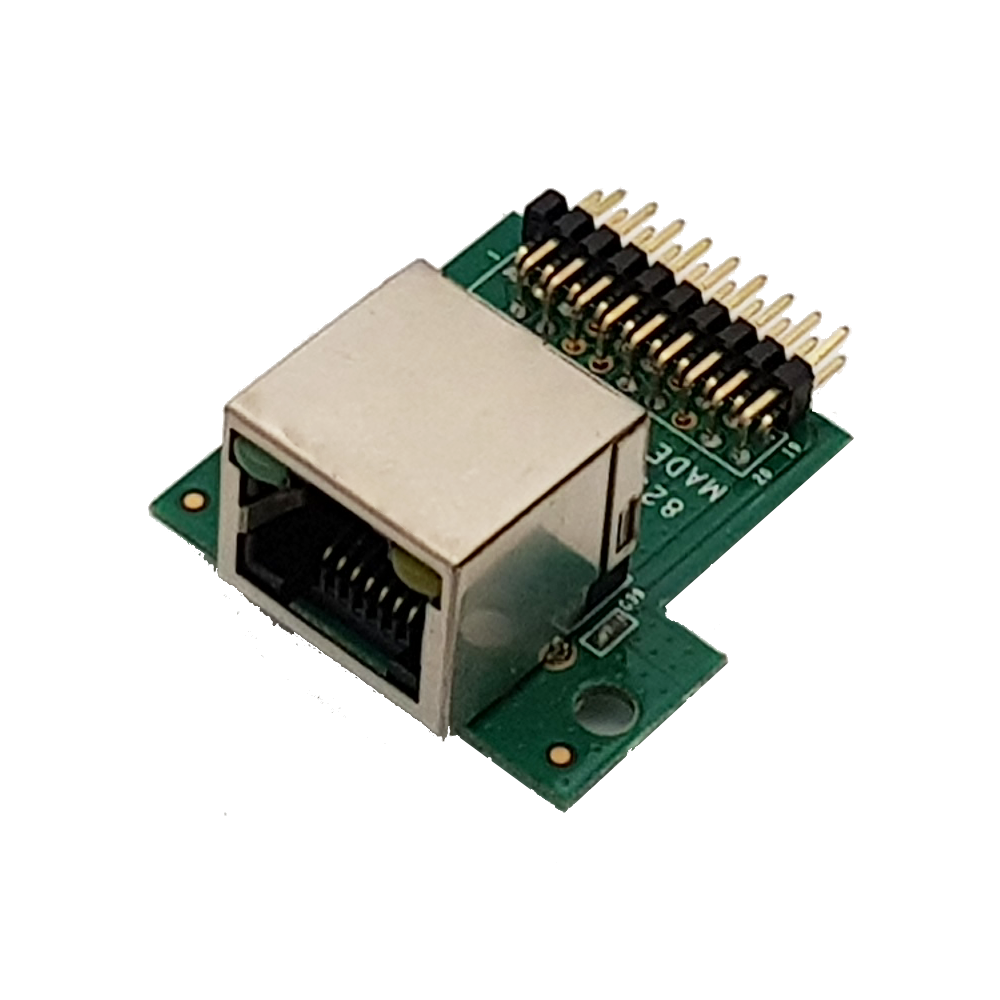

| External Ports | 1-RJ-45 |
System Requirements |
|
| Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |
|
ENVIRONMENTAL |
|
| Humidity | 5~85% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
Certification |
|
| CE – FCC – ROHS | |
APPLICATION
| Upgrade from 10/100 Ethernet capability to Gigabit capability |
| Add an Ethernet port to a workstation or server computer, for redundancy or bridging |
| Add networking capabilities to an old system with no Ethernet port |
