EM40021

  • MINI PCI-E 2-PORT RS422/485 CARD
  • Native single chip design
  • On chip 256-byte depth FIFO in transmit/receive path of each port
  • MiniPCI-Express with throughput up to 2.5Gbps
  • Supports RS422 & RS485 modes
  • Bi-directional speeds from 50 bps to 16 Mbps per port
  • Full Serial Modem Control
  • Supports Hardware, Software Flow Control
HARDWARE
Mode Name EM40021
Bus Type Mini PCI Express
Card Type MiniPCI-e
Chipset ID Asix Moschip-MCS9922
Interface Serial
Port Numbers 2

PERFORMANCE
Data Bits 5, 6, 7, 8
FIFO 256 Bytes
Max Baud Rate 115.2 Kbps
Flow Control Hardware, Auto Xon/Xoff, None
Parity None, Even, Odd
Serial Protocol RS-422/485

CONNECTOR(S)
Connector Type(s) 1-MiniPCI Express Male

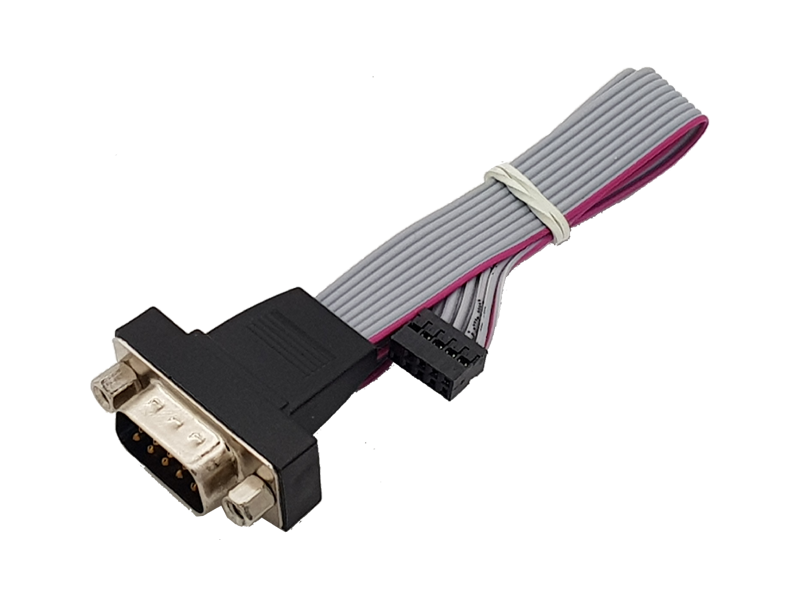

External Ports 2-DB-9 (9 pin, D-Sub) Male

System Requirements
Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.4 to 10.10
Linux 3.5.x to 4.11.x LTS Versions Only

ENVIRONMENTAL
Humidity 5~85% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)

Certification
CE – FCC – ROHS

APPLICATION

Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
Connect specialized serial devices (printers, scanners, ISDN terminal adapters and memory card readers)
Environmental Control (lighting, temperature, clocks)
Entertainment (video lottery terminals, slot machines, gaming systems)
Healthcare (patient monitoring equipment, nurses’ stations, modems)
Security (UPS control, access key panels, video cameras, card readers, modems)
Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Consumer (modems, PDAs, digital cameras, printers)ISDN Networking
